Flux Drum & Container Pump
F/FP430 with Mechanical Seal

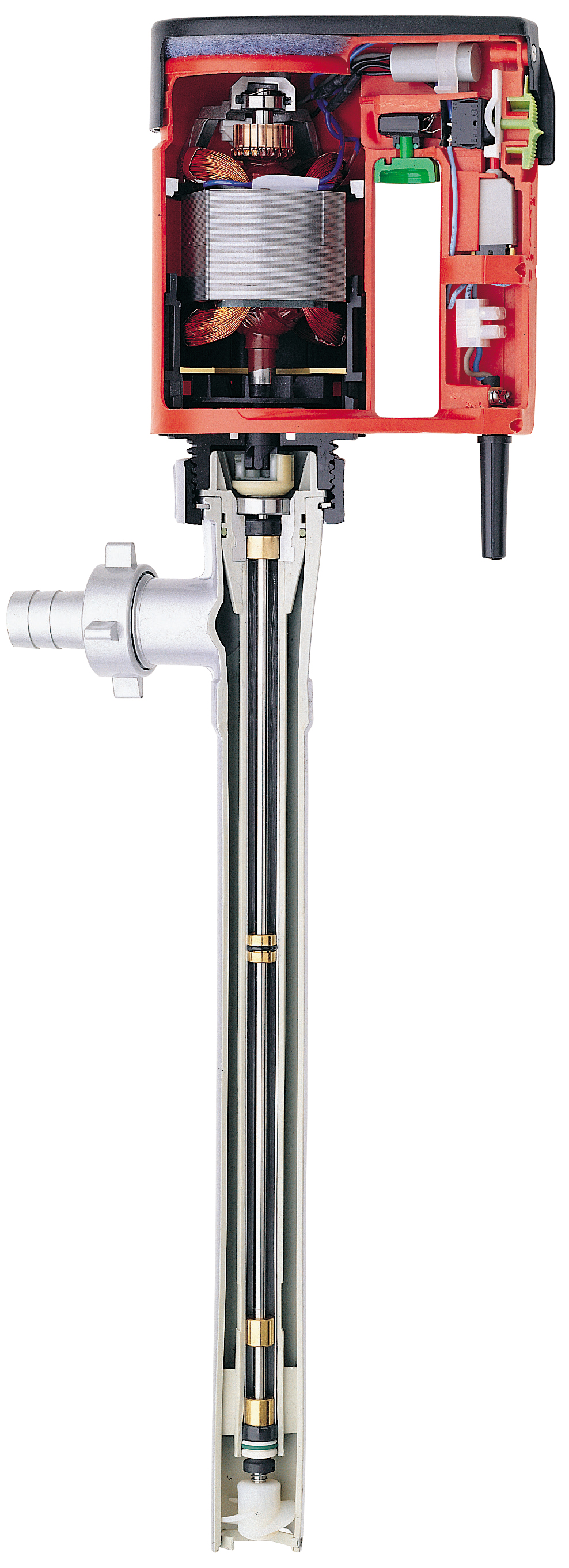

The universal F/FP 430 pump can be used for varios media and is suitable for conveying out of drums, IBC containers or tanks. Due to the construction with mechanical seal, the pump can be easily and quickly taken apart into its two main components. This allow good cleanability. Distinct feature, only at Flux: The inner tube is reinforced with a metal core on plastic models (PP and PVDF). This always allows full function of the mechanical seal. This way, leakage and unnecessary wear are prevented for the complete operating range. Furthermore, it provides highest stability and makes immersion lengths of up to 3,000 mm possible. The version in stainless steel and hastelloy C are EX-protected. The stainless steel version is also available as FOOD certified version.
F/FP430 is suitable for all acids and alkaline such as Acetic Acid, Chromic Acid, Formic Acid, Fruit Acid, Hydrochloric Acid, Hydrofluoric Acid, Nitric Acid, Phospheric Acids, Sulphuric Acid, Ammonia, Caustic
Flowrate: 240 l/min
Delivery Head: 30 m
Material: PP, PVDF, Stainless Steel, Aluminium

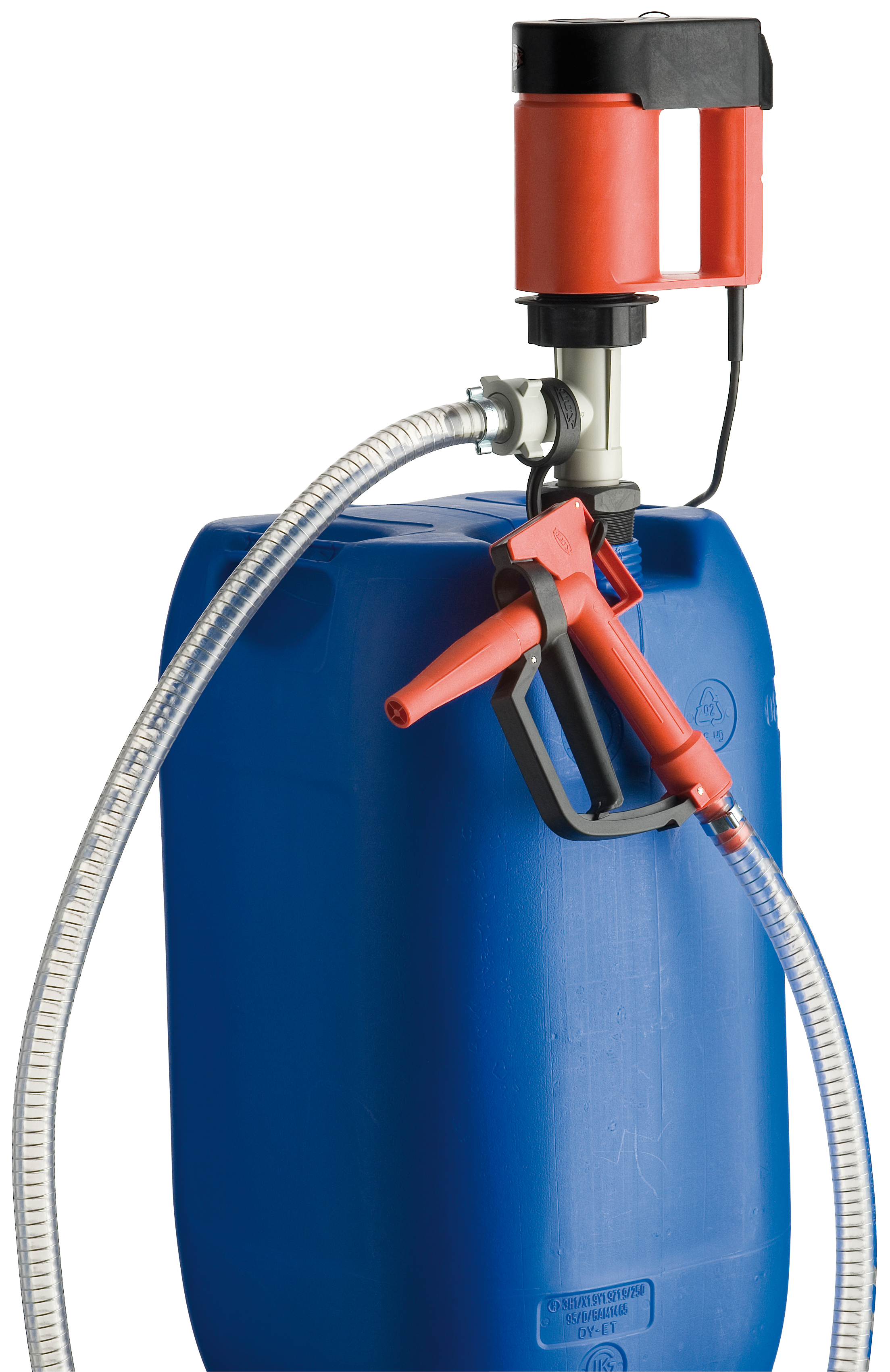

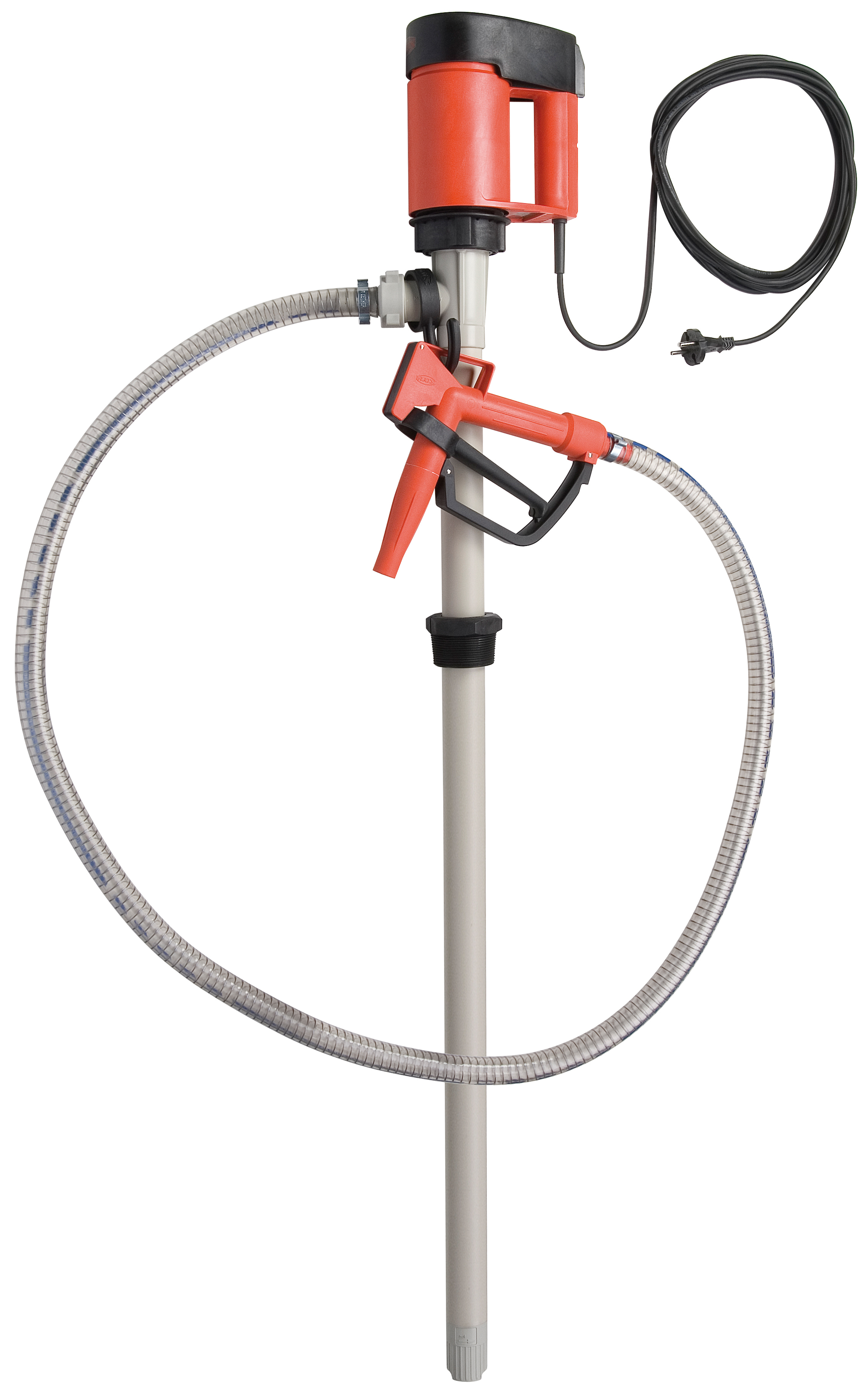

Pump Kit is supplied complete with pump, motor, compression gland for drum mounting, chemical hose, and hand nozzle (see picture)
