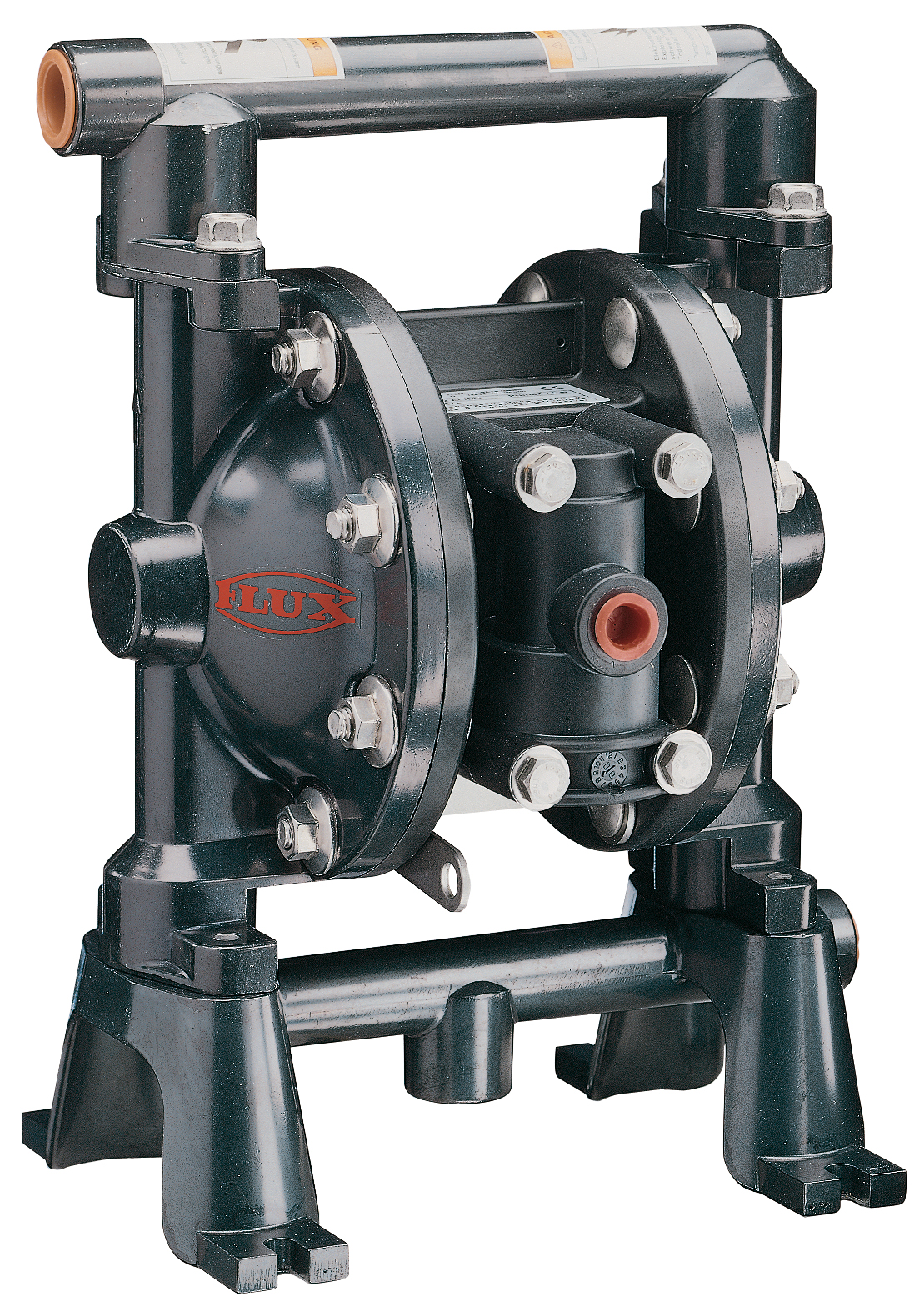

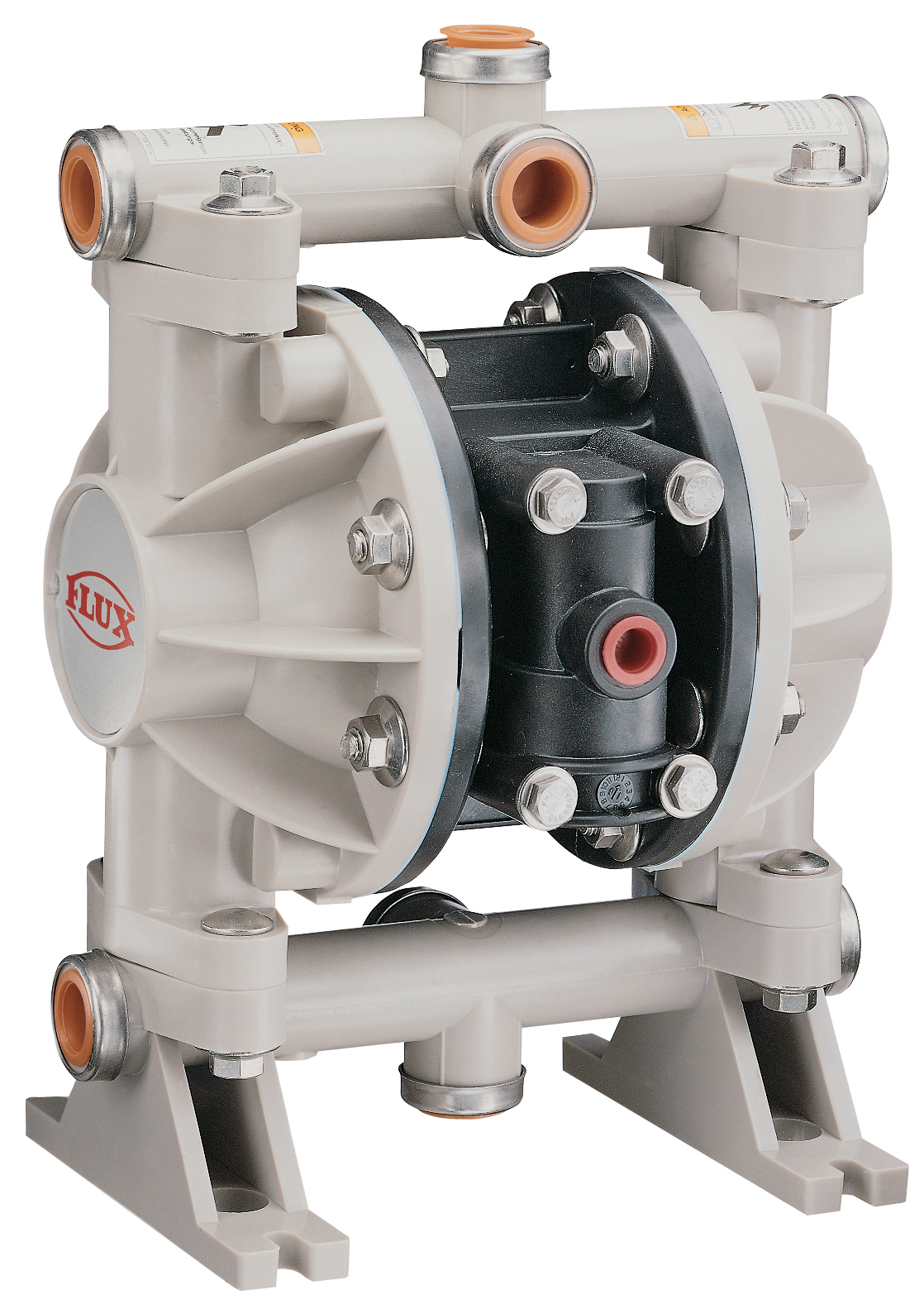

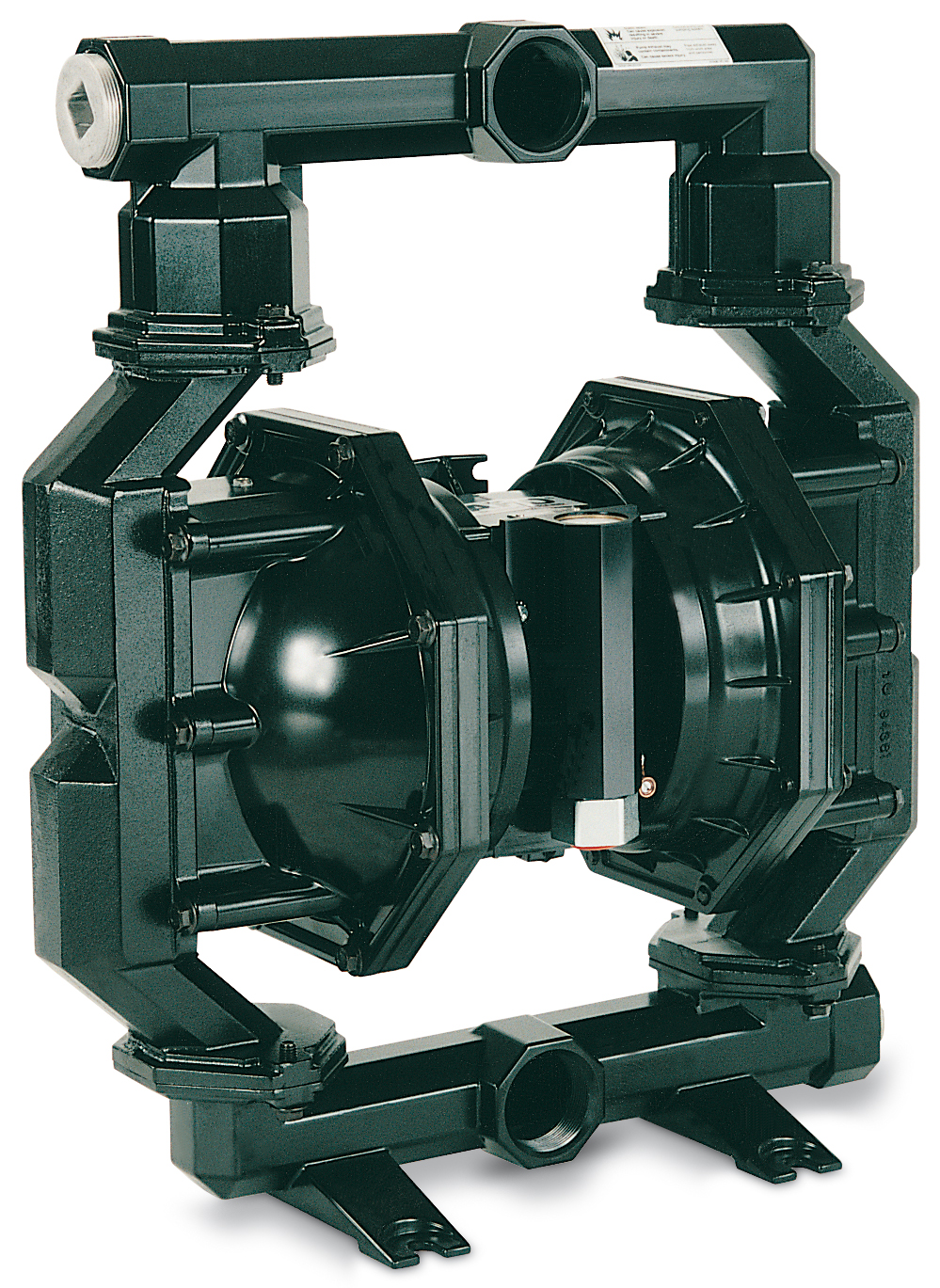

Air Operated Diaphragm Pump
FDM SS AL

Flux Air Operated Diaphragm Pump is apositive displacement pump designed fortransfer of high viscosity liquid and liquid withsolid in suspension, high abbrasive liquid and flammable liquids.

Stainless Steel SS316Ti
Suitable for highly flammable liquids, acetone, alcolhol, ammonia, benzene, solvents, vanish, perchloroethylene, trichoroethylene, toluol, caustic soda, fruit juice, milk, cooking oil

Aluminium Alloy AlMg5 (AL)
Suitable for alcohol, gasohol, dissel oil, glycol, fuel, hydraulic fluid, solvent, soap, wax.

Features
Pressure up to 8 bar (20 bar on 3:1 ratio)
Self-Priming, from a dry start
Variable delivery rate
No need by pass control
No leakage
Fully submersible
Suitable for dry run operation

Specification
Delivery rate up to 1000 l/min
Pressure up to 8 bar
Suction head up to 7.6 m
Max. solid size up to 9.5 mm
