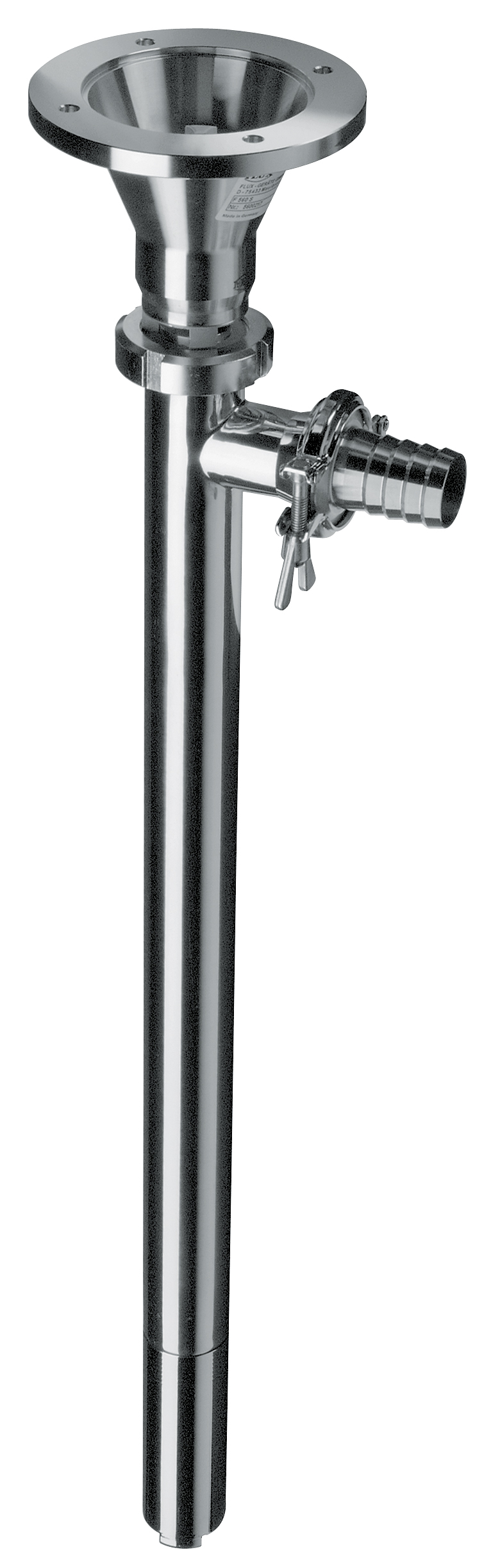

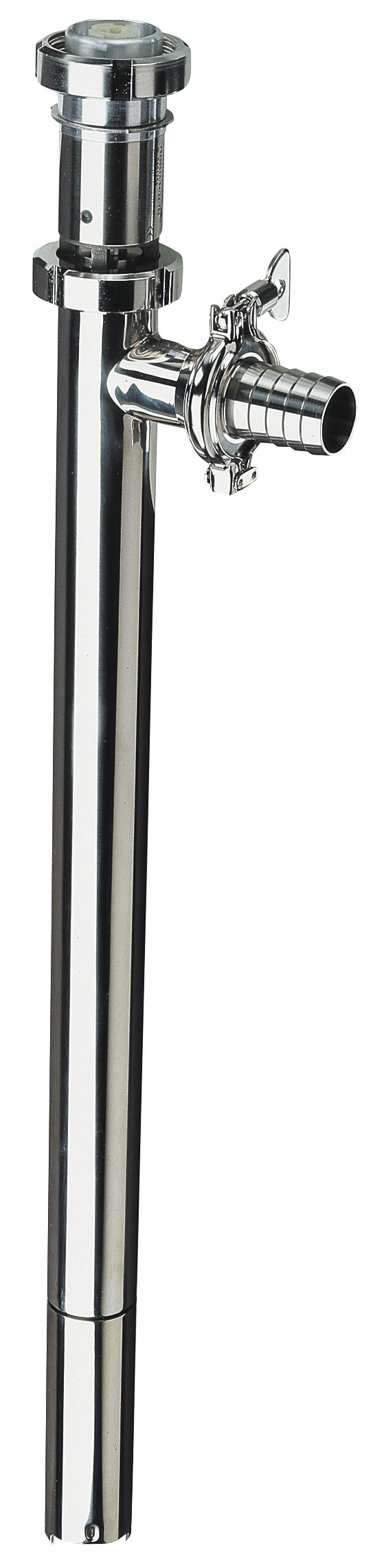

Flux High Viscosity Liquid Pump
F560S / F560GS - Sanitary eccentric worm

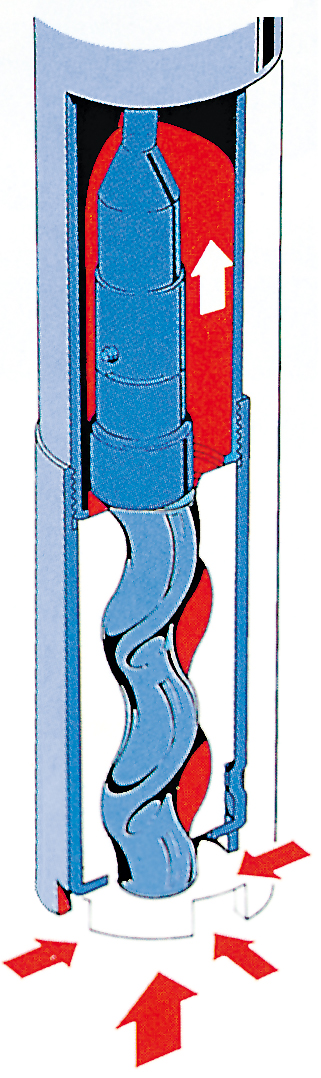

Flux eccentric worm-drive pumps are suitable for pumping thin to high viscosity fluids. The displacement pump work with low turbulence at a constant pressure and provide for a gentle and pulsation-free operation. Series F560 S / F560 GS are especially configured for food, cosmetic and pharmaceutical industries
Advantages
- with 3A certification for foodstuffs
- compliance with directive (EC) 1935/2004 and FDA CFR 21
- hygienic, minimal dead spots
- easy to disassemble
Delivery rate 30 / 50 l/min
Delivery head 8 bar
Seal Type mechanical seal
Tube material SS316Ti
Stator Material PTFE
Stator housing SS316Ti
With safety bar and inliner

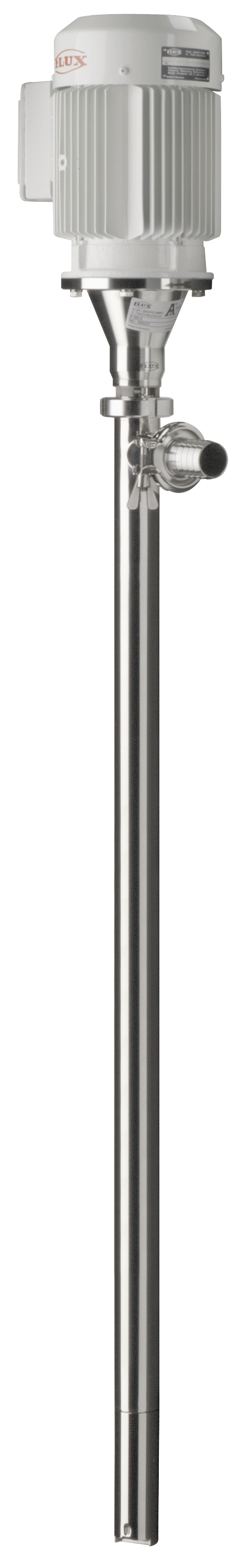

Motor 3 phase, 400V, 50Hz, 700 rpm, 0.75/1.1 kw
3 phase, 400V, 50Hz, 930 rpm, 0.75/1.1 kw
Compressed Air Motor, 1000 rpm, 0.5 kw
Compressed Air Motor, 1000 rpm, 1.1 kw
Compressed Air Motor, 1000 rpm, 1.8 kw
