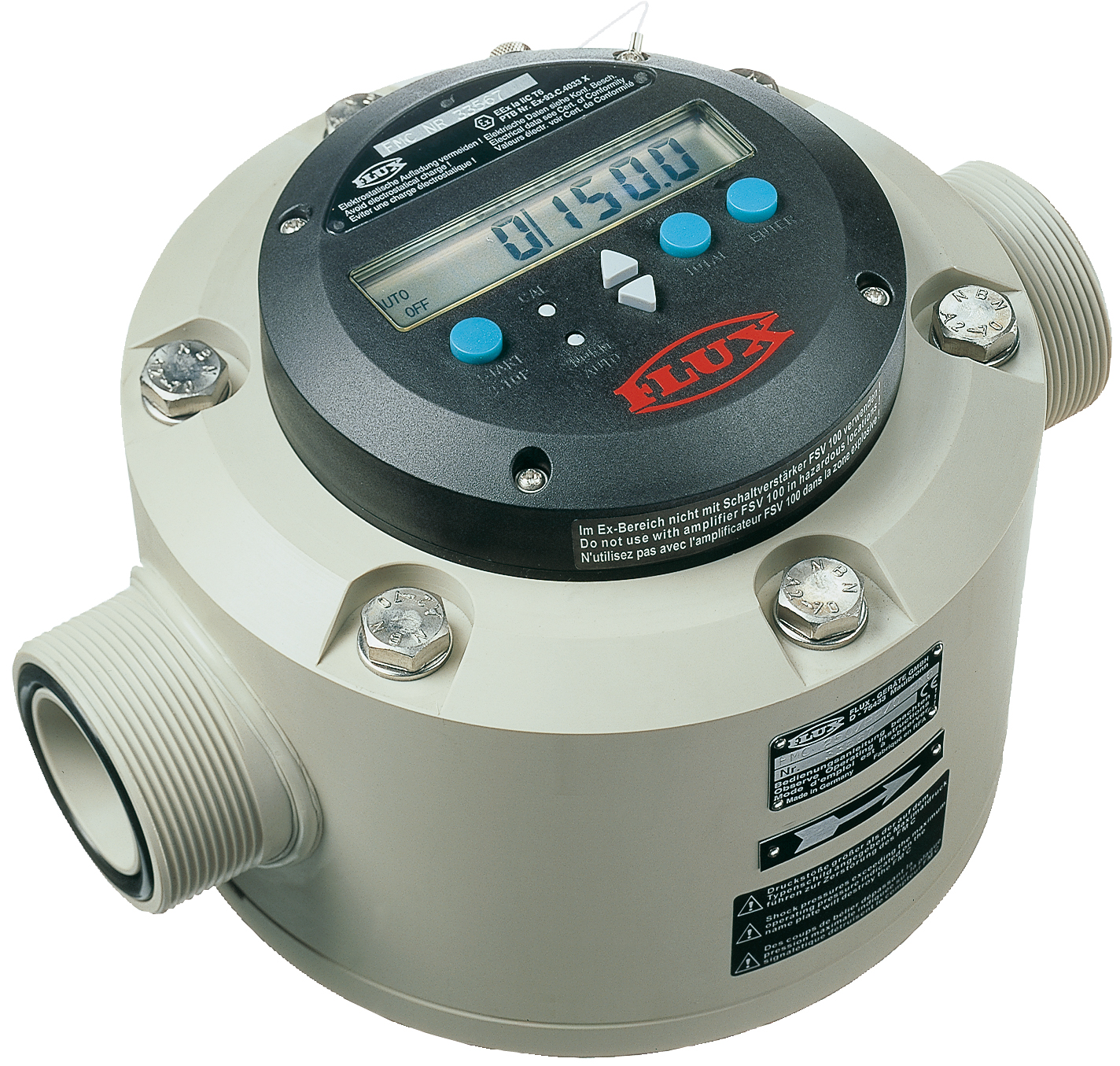

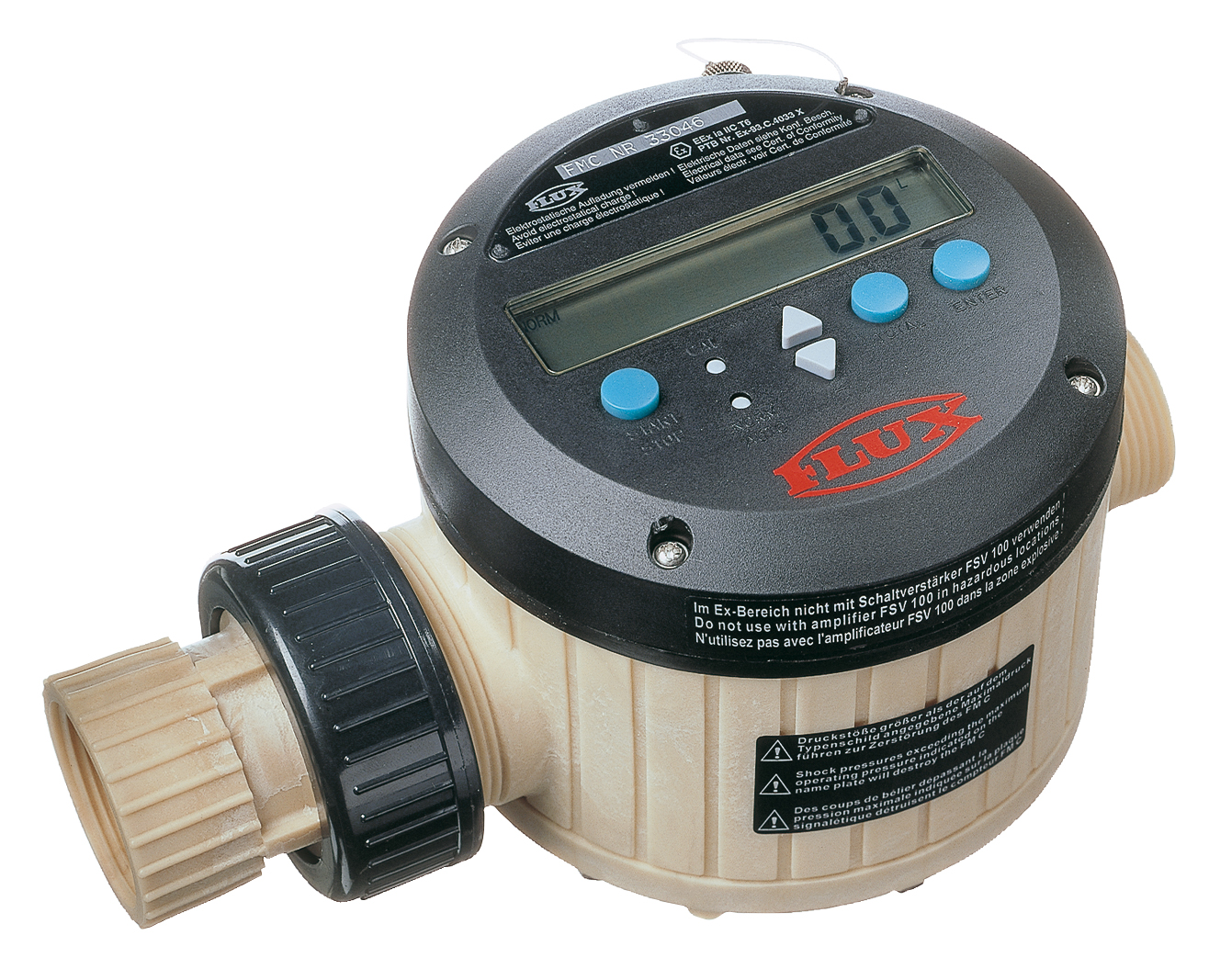

Flux Liquid Meter / Flowmeter
FMC Material ETFE

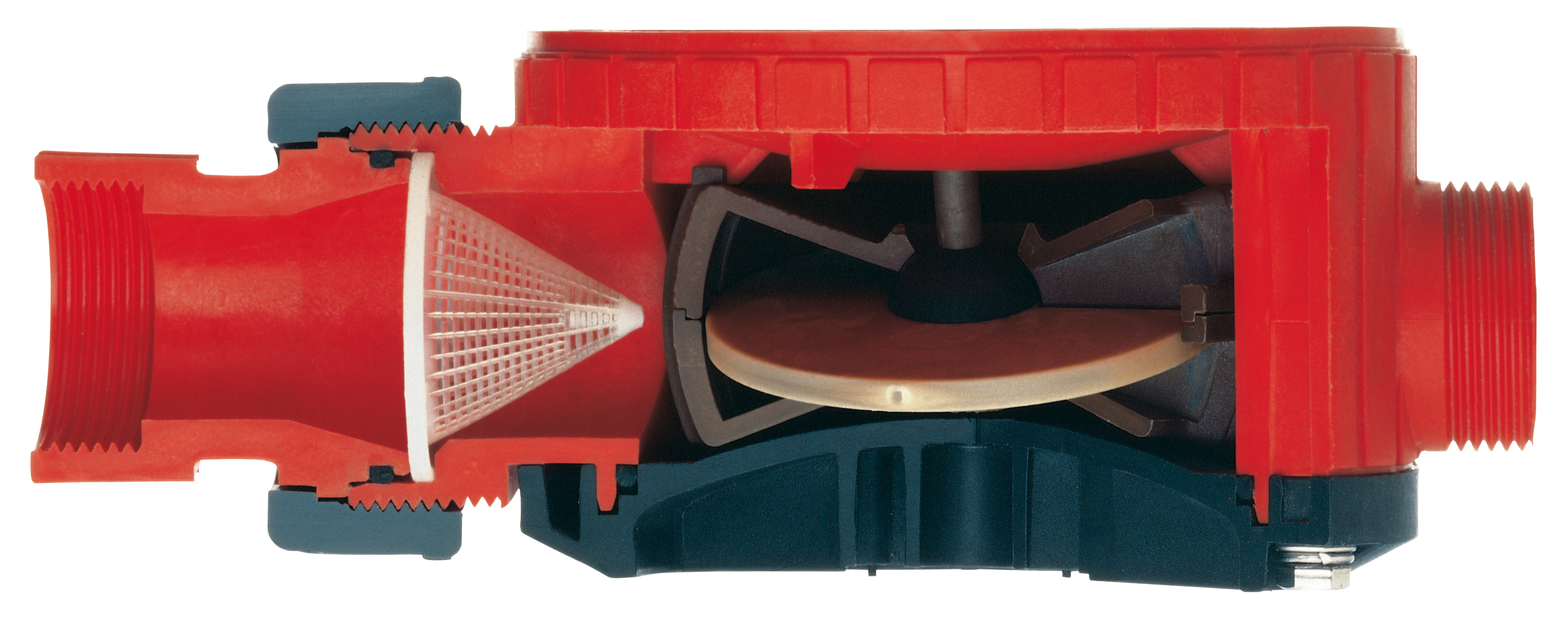

The flow meters FMC work on the nutating disc principal. The liquid flow actuates the nutating disc. A Reed sensor is imbedded in the disc. The number of rotation is counted and evaluated by the Fluxtronic.
Advantages
High accuracy
High resistance
Able to handle a small amount of solids suitable for hazardous area
Display flow amount and totalized
Batch control capability
ETFE Ethylene Tetrafluoroethylene
High Chemical resistance
For acids, alkalis and flammable liquid
For temperature up to 80 degrees C
For hazardous area
Specification
Protection class IP54
Flow rate 10-100 / 25-250 l/min
Accuracy +/- 1%
Repeatability +/- 0.15%
Viscosity 2,500 mPas
