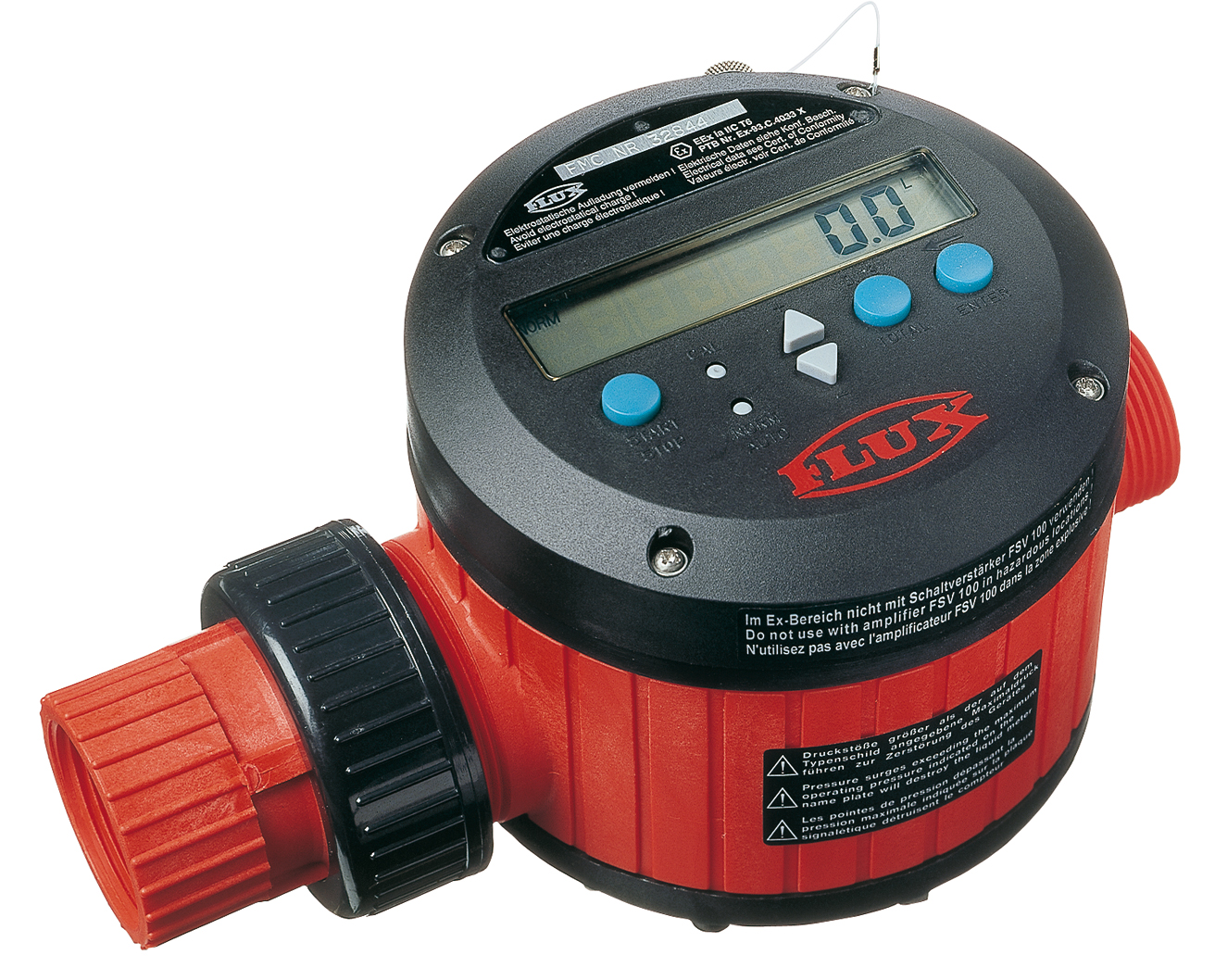

Flux Liquid Meter / Flowmeter
FMC Material PP

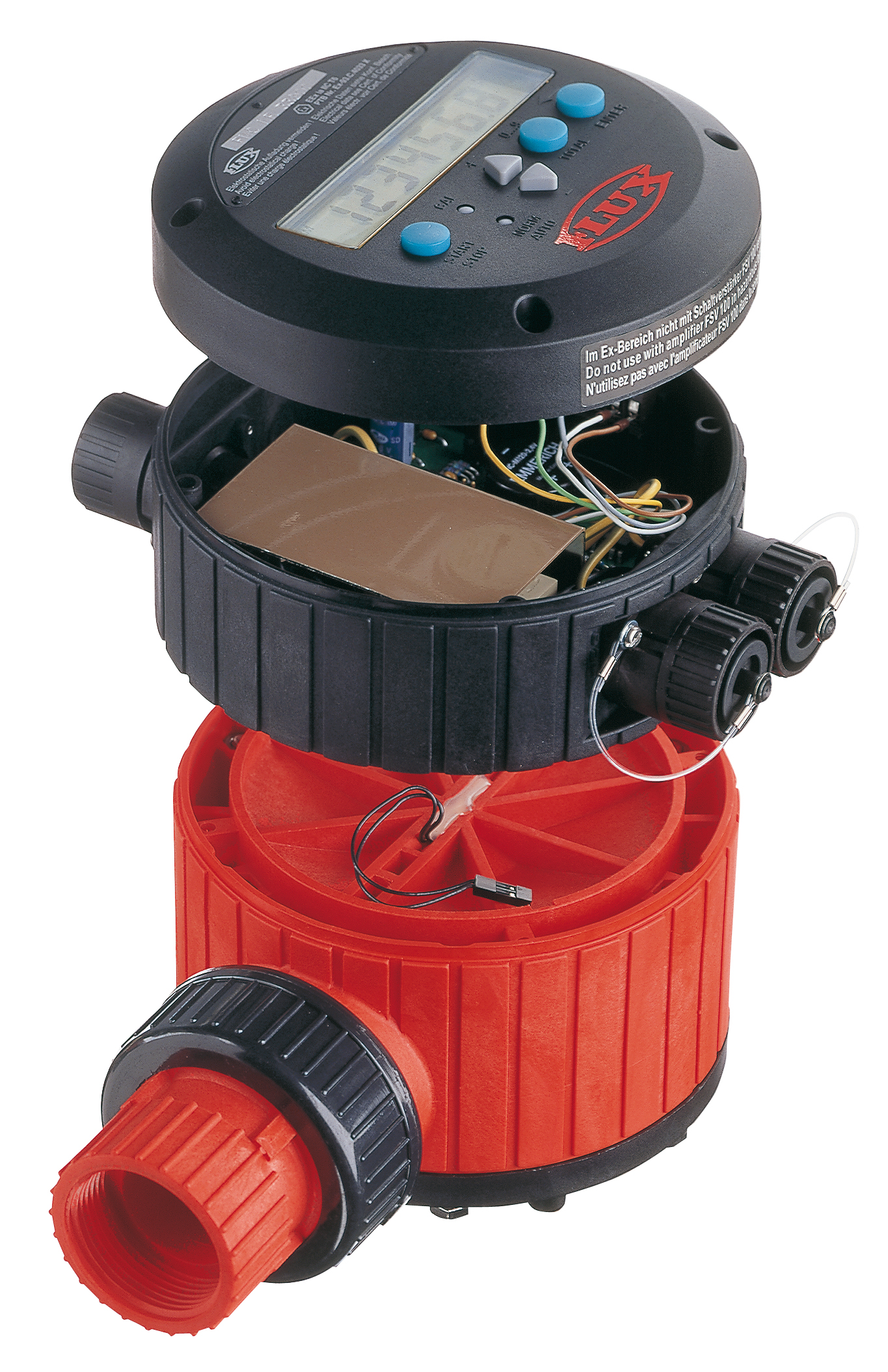

The flow meters FMC work on the nutating disc principal. The liquid flow actuates the nutating disc. A Reed sensor is imbedded in the disc. The number of rotation is counted and evaluated by the Fluxtronic.
Advantages
High accuracy
High resistance
Able to handle a small amount of solids suitable for hazardous area
Display flow amount and totalized
Batch control capability
For media
Mineral oil
Sulfuric Acid up to 98%
Hydrochoric Acid
Phosphoric Acid
Formic Acid
Alkaline
Specification
Protection class IP54
Flow rate 10-100 / 25-250 l/min
Accuracy +/- 1%
Repeatability +/- 0.15%
Viscosity 2,500 mPas
