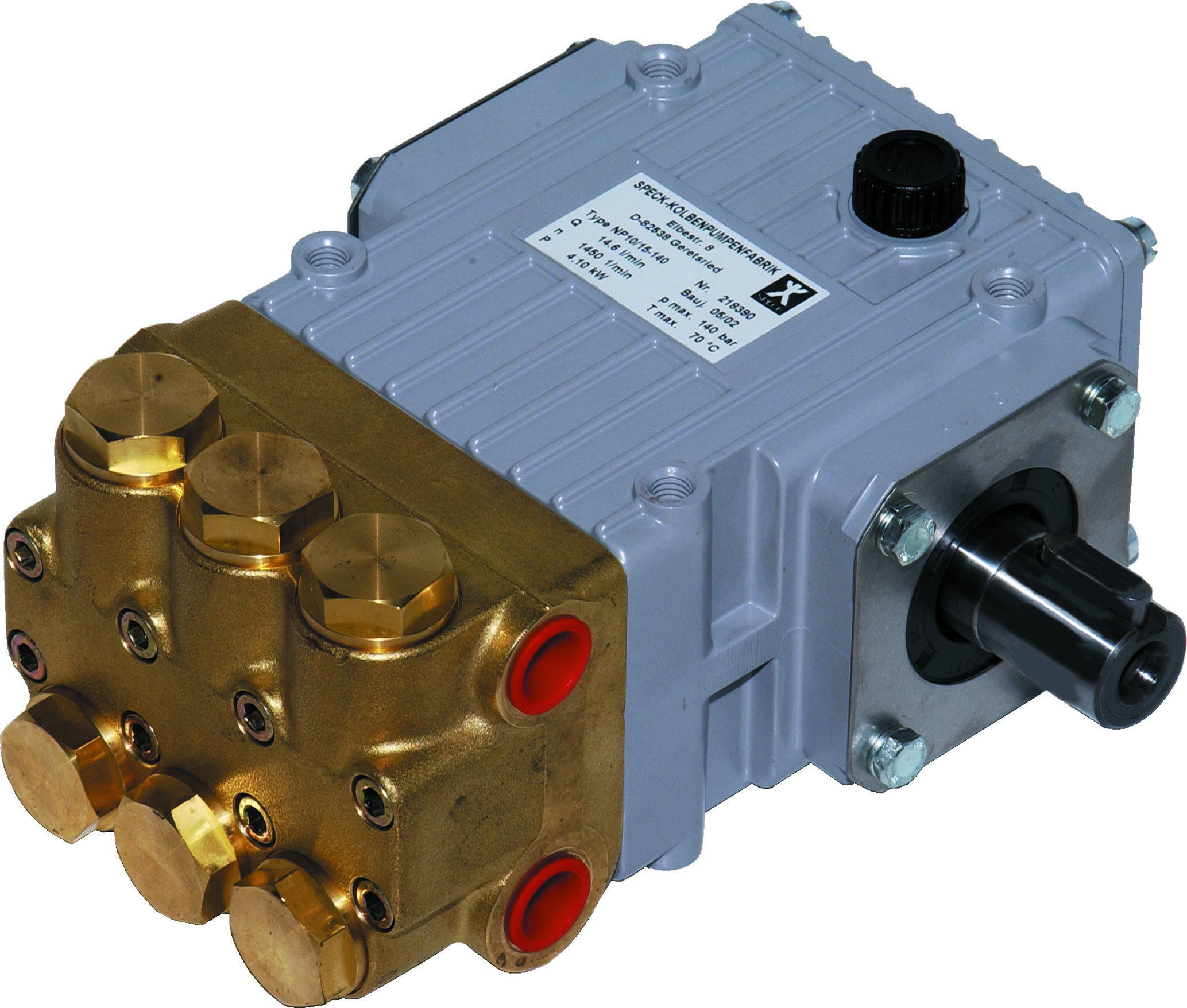

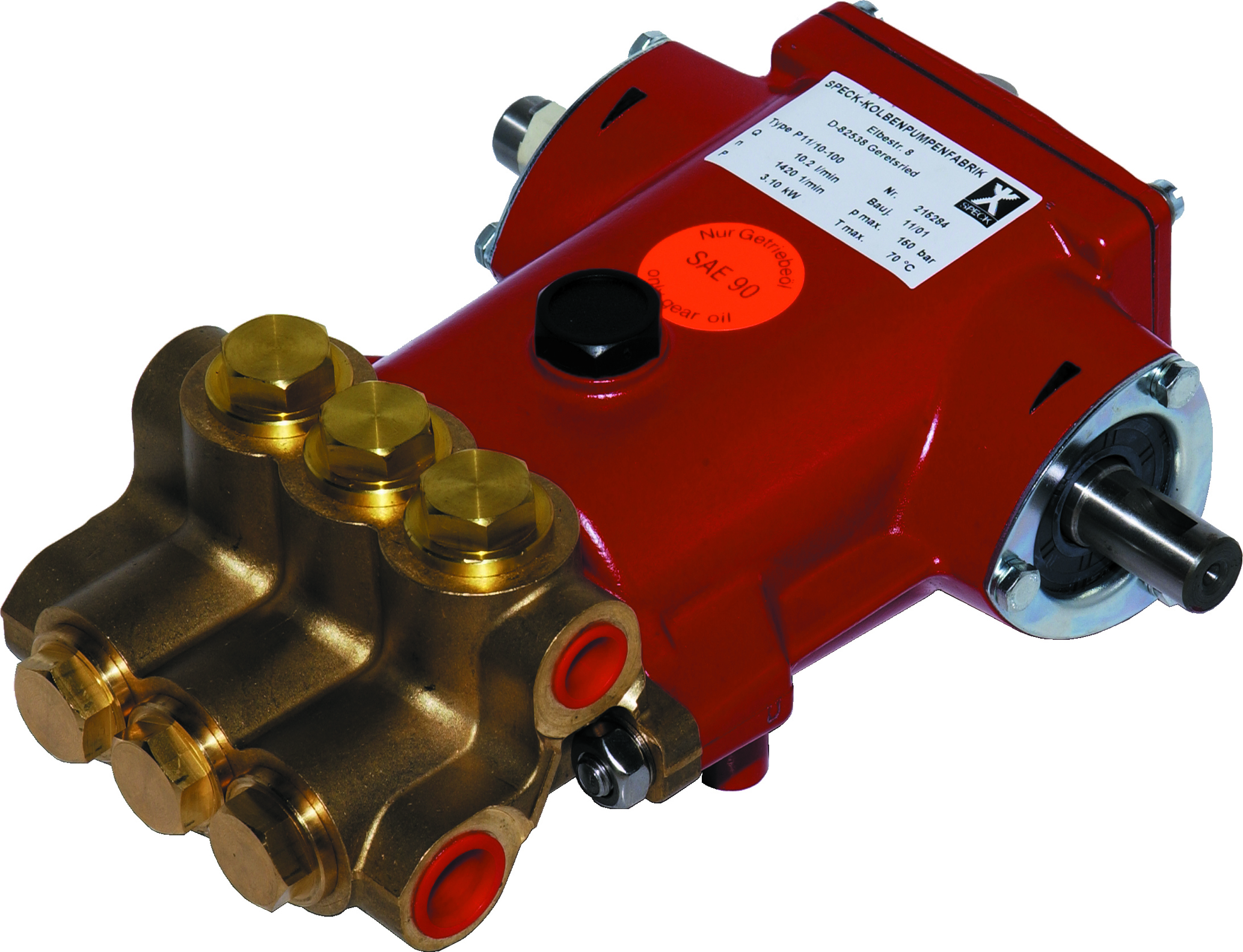

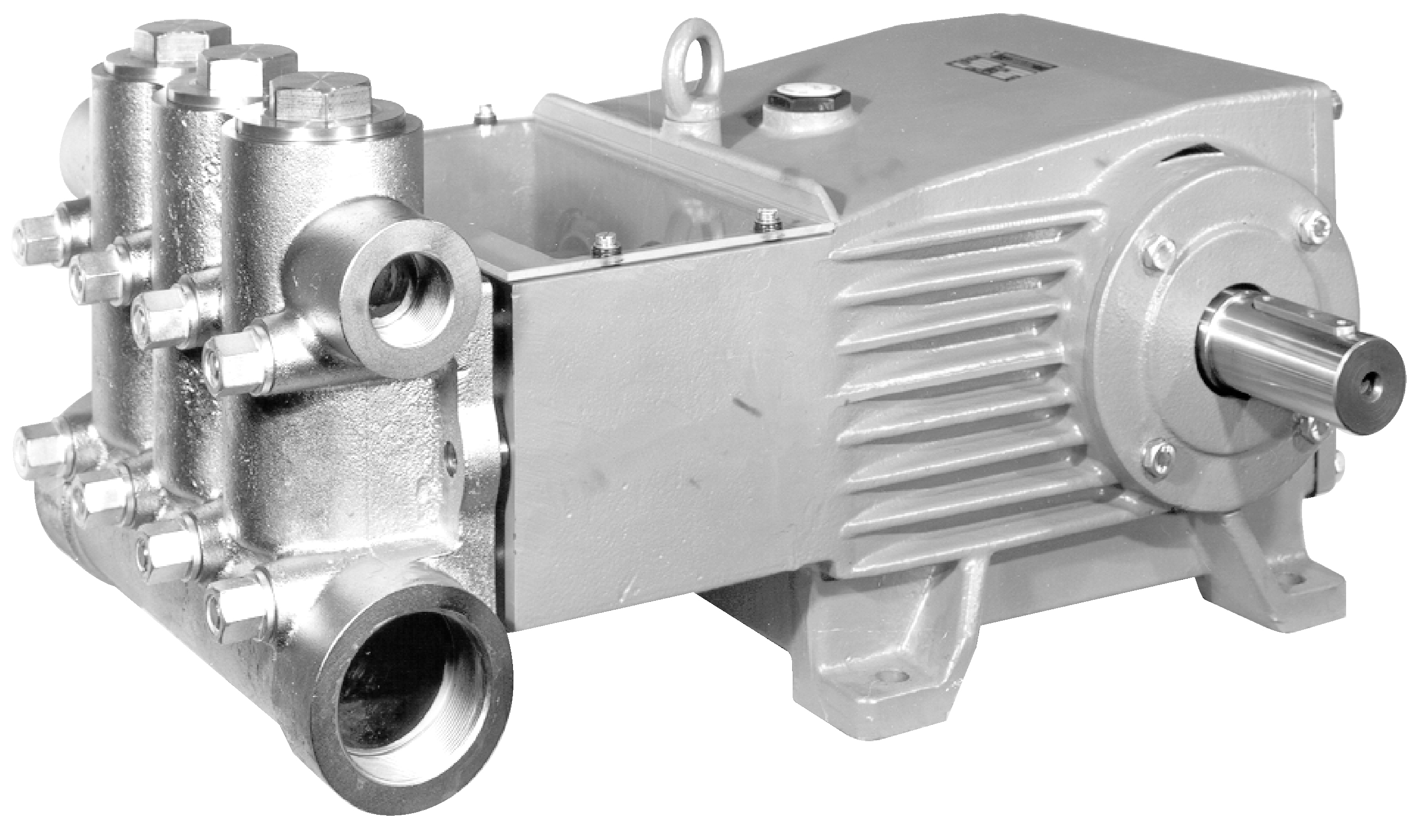

Speck Triplex
High Pressure Plunger Pump

Speck Triplex high pressure plunger pumps mainly used for high pressure system pumping such as high pressure cleaning, reverse osmosis system and boiler feeding. Speck Triplex high pressure plunger pumps consisting of serveral different version:

- Standard high pressure cleaning
- Version for CO2
- Version for hot water
- PUR Technology version
- Bentonite version
- Sea water version

Construction Characteristics
Crankcase of solid aluminium-cast, brass,
stainless steel
Crankshaft and ball bearing run in oil
Solid ceramic plunger
Double plunger sealing with leakage return
All gaskets in seal sleeves ensuring precise
cenring and easy replacement
Identical suction and discharge valves,
easy accessible.

Material of Pump Construction
Valve Casing Special brass, SS
Plunger Ceramic
Valves Stainless Steel
Sleeves Nitrile with fabric reinforced
Support Rings Teflon with graphite
Crankshaft Forged & Hardened Steel

Specification
Capacity up to 39,000 l/h
Pressure up to 1,200 bar
Power up to 110 kw
