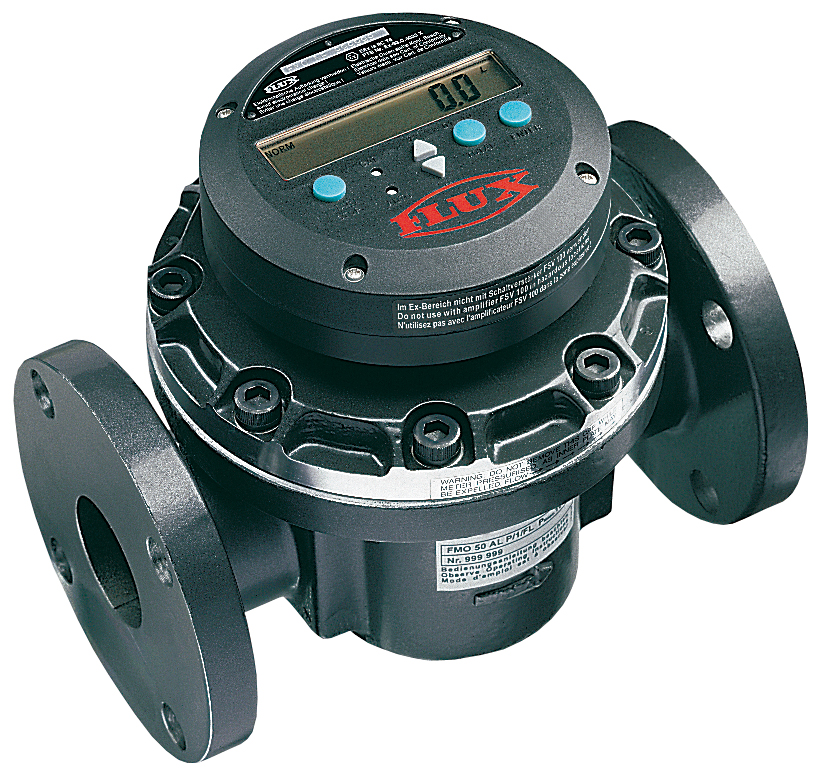

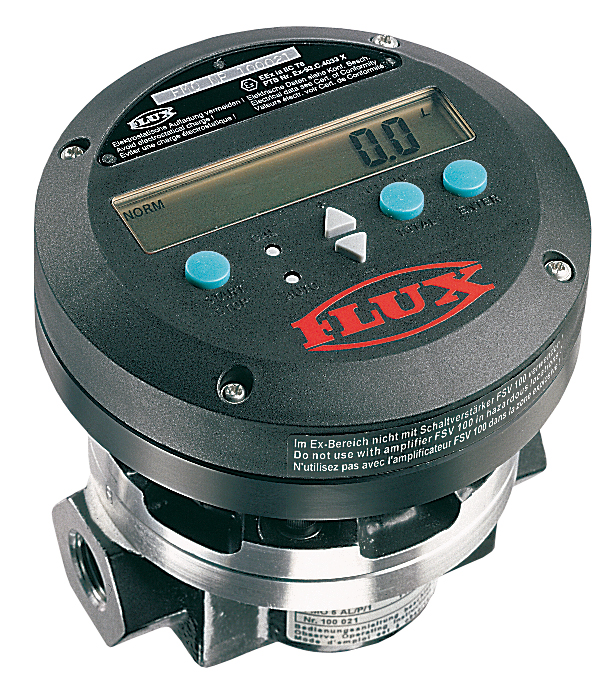

Flux Liquid Meter / Flowmeter
FMO - Stainless Steel and AL

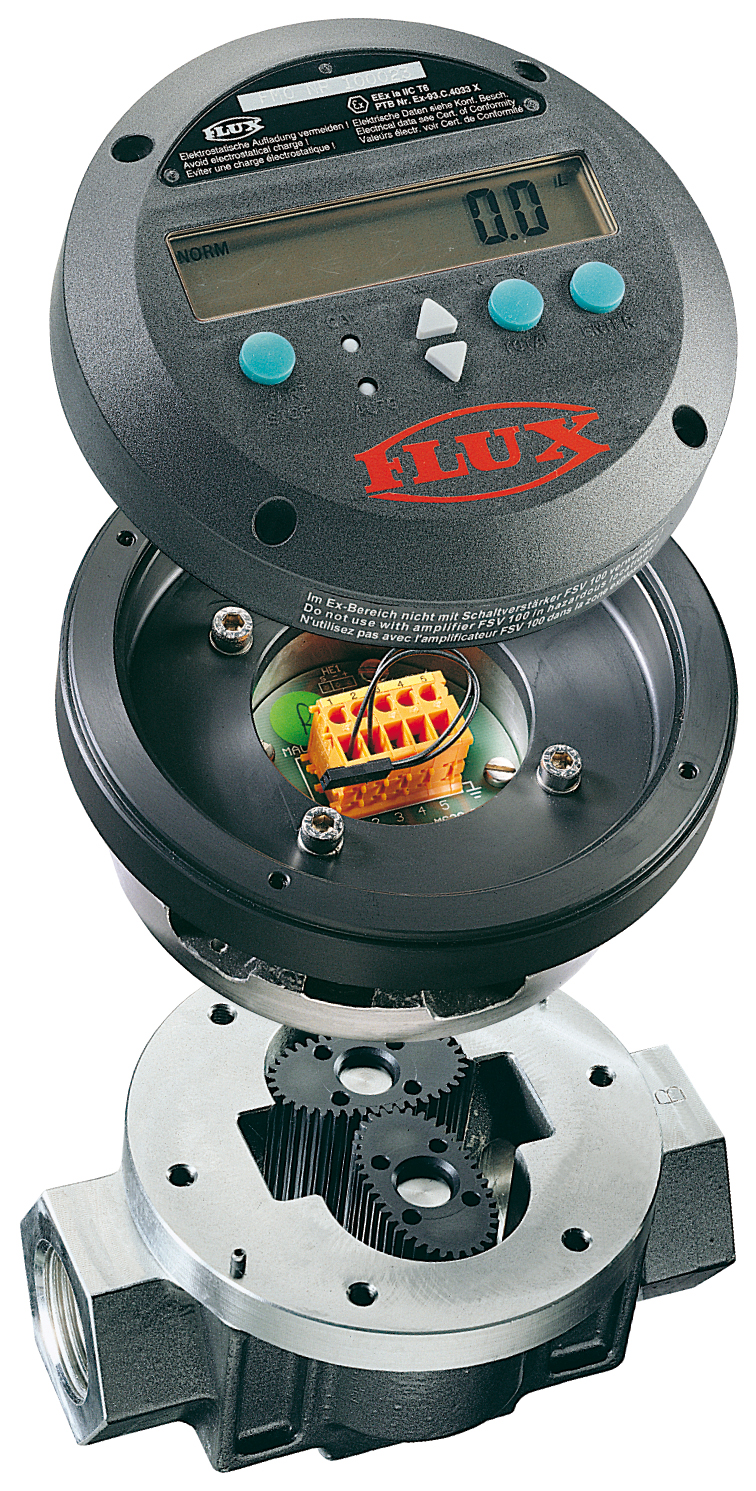

The flow meters FMO work on the oval rotor principal. The liquid flow actuates the rotor.A Reed sensor is imbedded in rotor.The number of rotation is counted and evaluated by the Fluxtronic.

Advantages
Suitable for high viscosity liquids
High resistance
Able to handle a small amount of solids suitable for hazardous area
Display flow amount and totalized
Batch control capability

Features
Liquid viscosity up to 500,000 mPas
High accuracy
High resiatance
For hazardous area

Specification
Protection class IP54
Flow rate up to 380 l/min
Accuracy +/- 1%
Repeatability +/- 0.03%
Viscosity 500,000 mPas
